PIRA 3B60.20 Beats: Beats on a Scope
Click the back button of your browser to return to the Master List

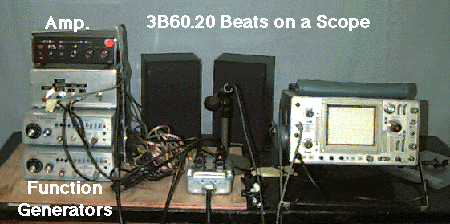

Picture shows demonstration an older apparatus used at the University
of Texas at Austin back in 1996.
Instructions / Notes:
- The current configuration uses two slightly unmatched tuning forks rather than two separate function generators driving loud speakers.
- Student observe the resulting wave form via the classroom video projection system.
- A microphone is placed midway between the tuning forks and its signal is inputted to a oscilloscope.
- The oscilloscope's video output is connected to a HDMI connection below the A/V console.
- Be sure to strike each tuning fork with an equal amount of force, so that the amplitude emitted from the resonance box of each tuning fork is about the same.
