PIRA 1C30.10 Measuring g: - Freefall Timer -

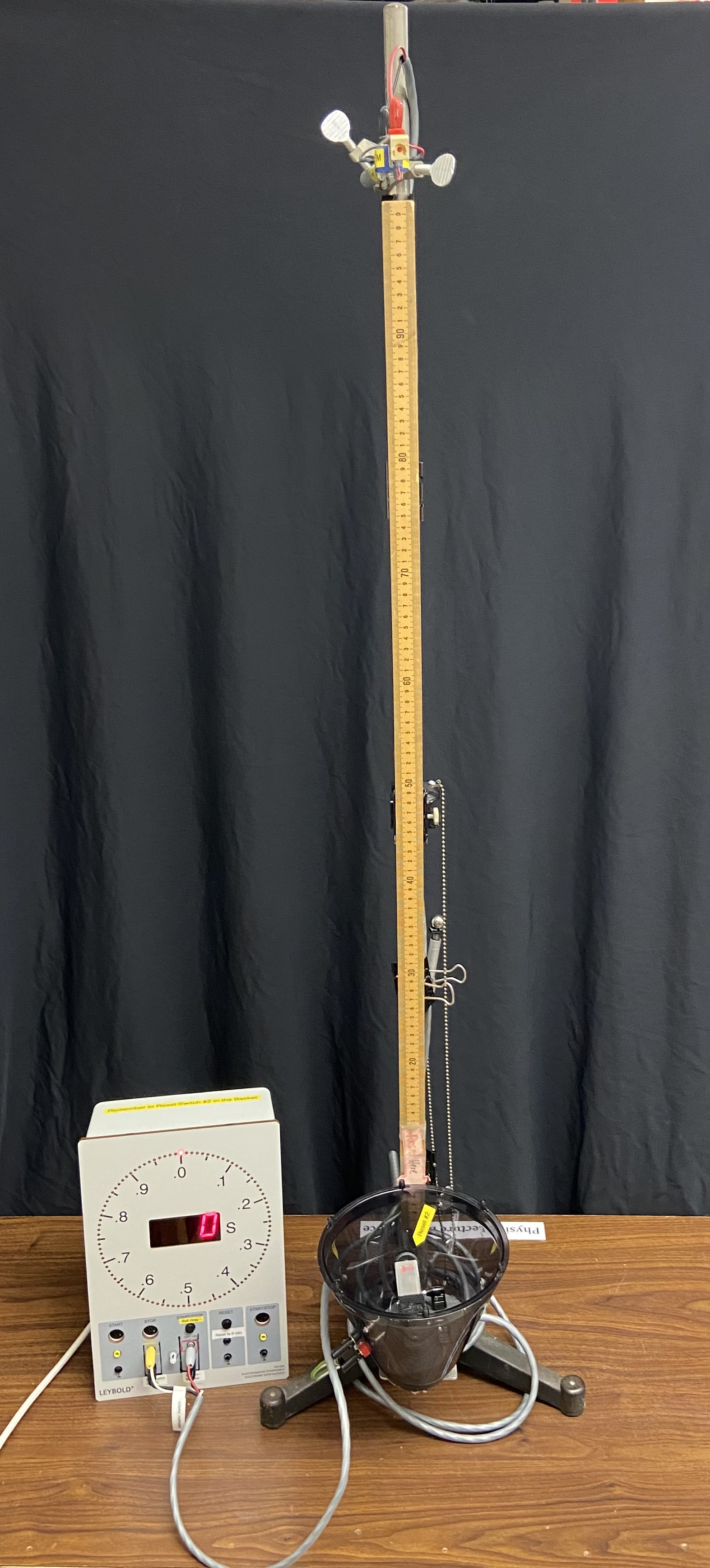

The image shows demonstration used at the University of Texas at Austin.
Instructions / Notes:
- The demo uses an electronic timer, a steel ball, an electromagnet at the top of a ring stand and a mechanical cut-off switch.
- The distance between the electromagnet at the top of a ring stand and the mechanical cut-off switch is one meter.
- Do not attempt to adjust the distance between the electromagnet and the mechanical cut-off switch.
- The mechanical cut-off switch interrupts a circuit with in the clock - which stops its measurement.
- Do note that the mechanical cut-off switch needs to be reset between runs - It is labelled as an interruptor switch on the bottom most image on this web page.

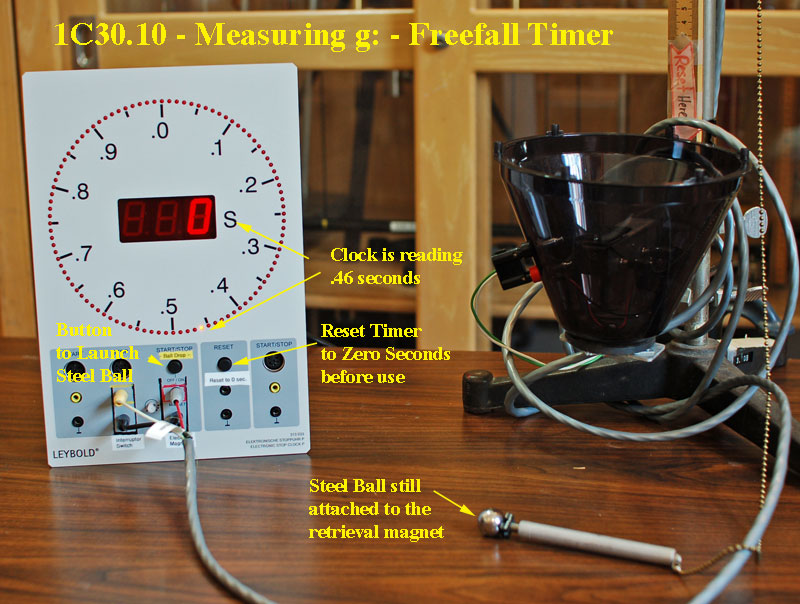

Image below shows a closer view of the Leybold timer used for this demo.
Instructions / Notes - continued :
- Be familiar with two of the small, black buttons on the front panel of the Leybold timer.
- The black button on the right is used to reset the timer to zero seconds after each data run.
- The black "Start/Stop" button on the left releases the ball from the electromagnet at the top of the ring stand.
- The reset procedure for a second data run requires 2 steps.
- Push the reset button on the front panel of the timer.
- In the catch basket at the bottom of the ring stand - push down on inner most end of the interruptor switch - where the number 2 is written.
- (See the bottom most image for more details.)
- Demo Staff: This demo needs to be set up and tested on the day before it is needed.
- The interruptor switch - (which acts as the timer's remote cut-off switch) - is located at the bottom of the ring stand.
- It is a mechanical switch that can get sticky after several uses, at which point the clock will run continuously after the ball drops.
The final image shows the timer's cut-off switch, located in the bottom of the catch basket. - It needs to be reset between data runs.
- Last updated on 3/28/2018 - University of Texas at Austin - All Rights Reserved -
