PIRA 1D60.10 Projectile Motion: Howitzer and Tunnel
Instructions / Notes:
- A small cart - rolling at a constant speed -shoots a ball upwards before entering a tunnel
-
The ball travels in a parabola due to the combined horizontal motion of the launcher and a vertical launch of the cannon, which is pointed upward.
- The ball falls in the cart on the other side of the tunnel
-
Caution: A slow, steady motion must be used to launch the cart - to prevent it from crashing to the floor.
-
The small on/off dip switch is left in the "off" position, when the demo is not in use to prevent the coil from overheating and conserve battery life.

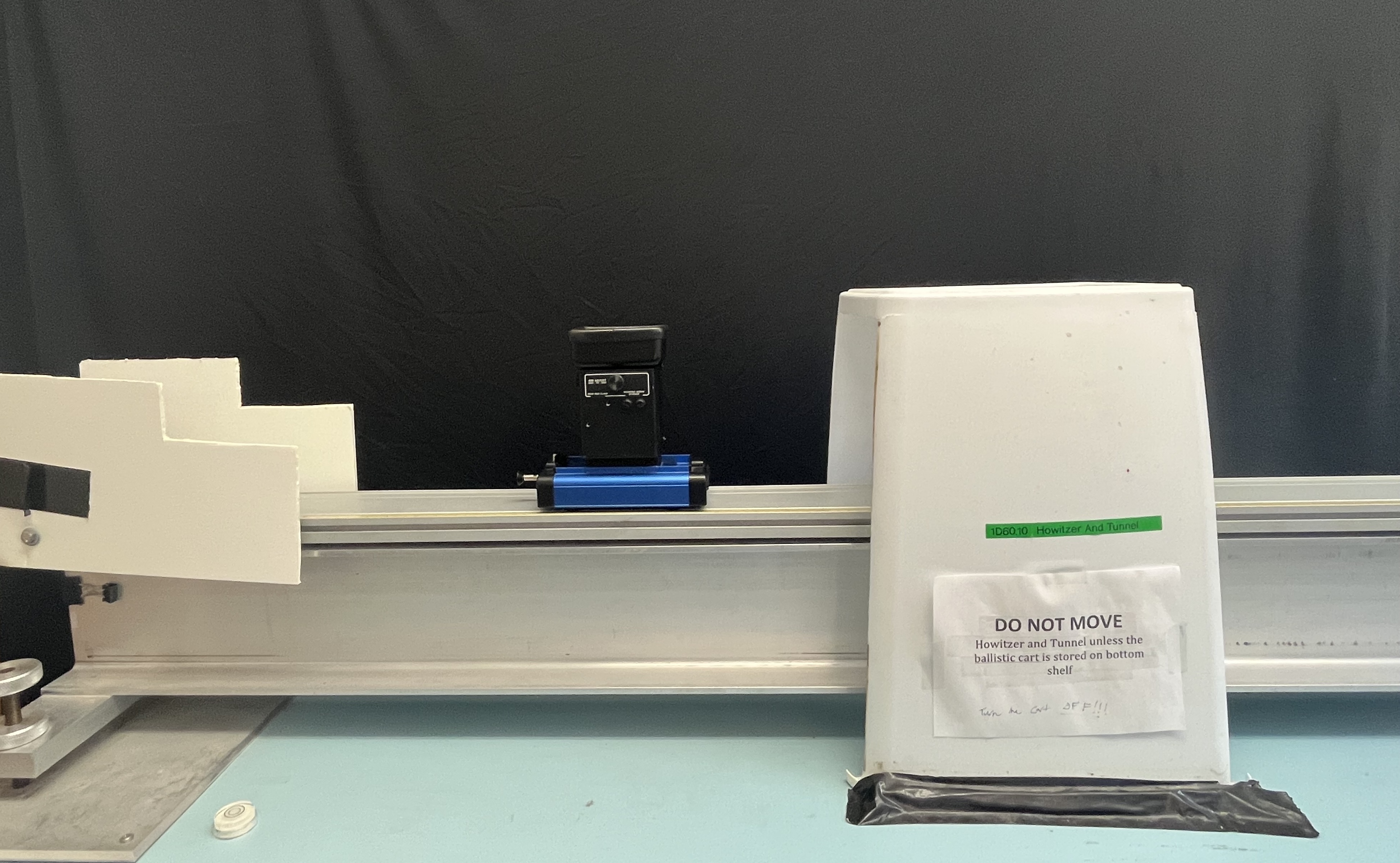

Photo Shows the Demonstration as Used at the University of Texas
at Austin.
Video Shows the Demonstration as Used at the University of Texas
at Austin.
