PIRA 1J30.10 Resolution of Forces: Suspended Block
Click your browser's "Back" icon to return to the main index.

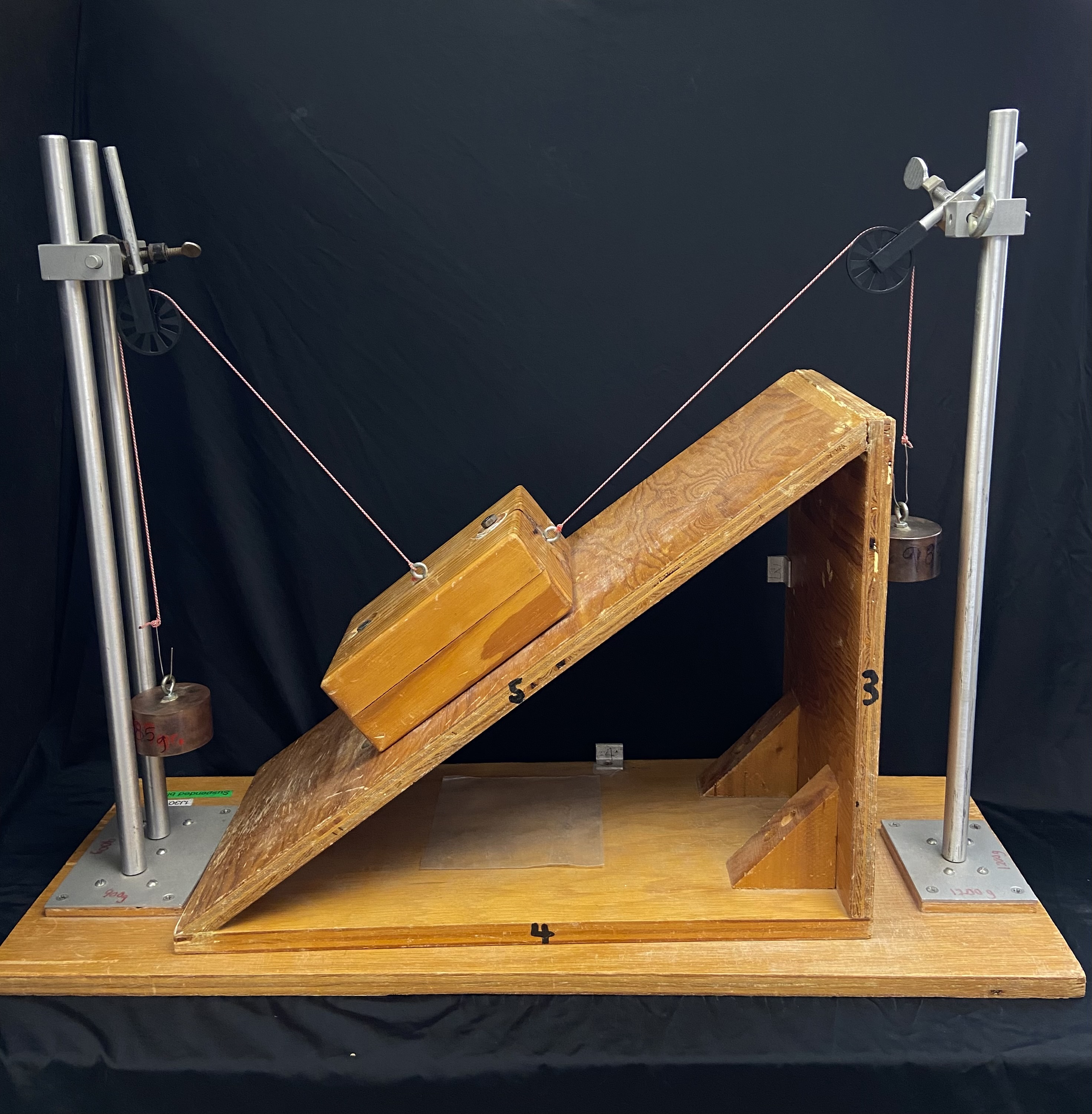

Photo Shows the Demonstration Used by the University of Texas at
Austin.
Instructions / Notes:
-
The sides of the triangle are in the ratio of 3:4:5.
-
The 1500 g block rests on a stop which can be removed after the force parallel to the incline is balanced.
-
Slide the incline out of the way after the force perpendicular to the incline is balanced. The block will be suspended.
-
The masses to balance the perpendicular and parallel forces are 910 g and 1210 g respectively.
