PIRA 1S10.10 Kepler's Second Law

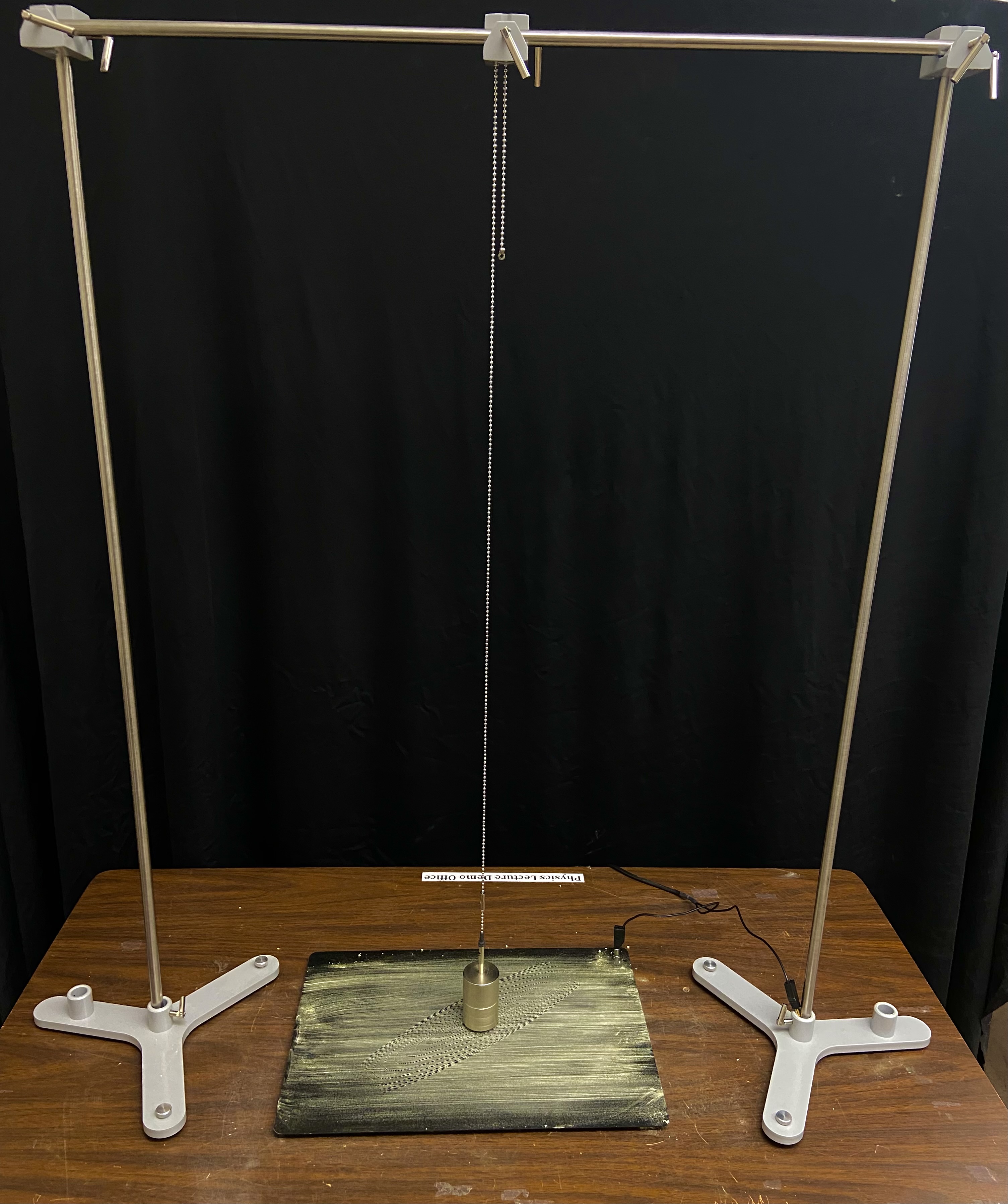

Photo shows the demonstration used at the U.T. Austin Physics Dept.

• Kepler's Second Law.

• In equal time intervals, the areas swept by the elliptical path are also equal.

• This demo contains Sulfur powder. Under no circumstances should the instructor or demo worker operate this demo without gloves. Lab coats can also be worn.

• The MSDS is with the demo at all times.

• DO NOT touch your skin or clothing when wearing gloves.

• Verify that the demo is plugged in and that the power strip is on.

• Release the pendulum such that an elliptical orbit is made.

• Stop the pendulum and rest the chain on the tripod stand.

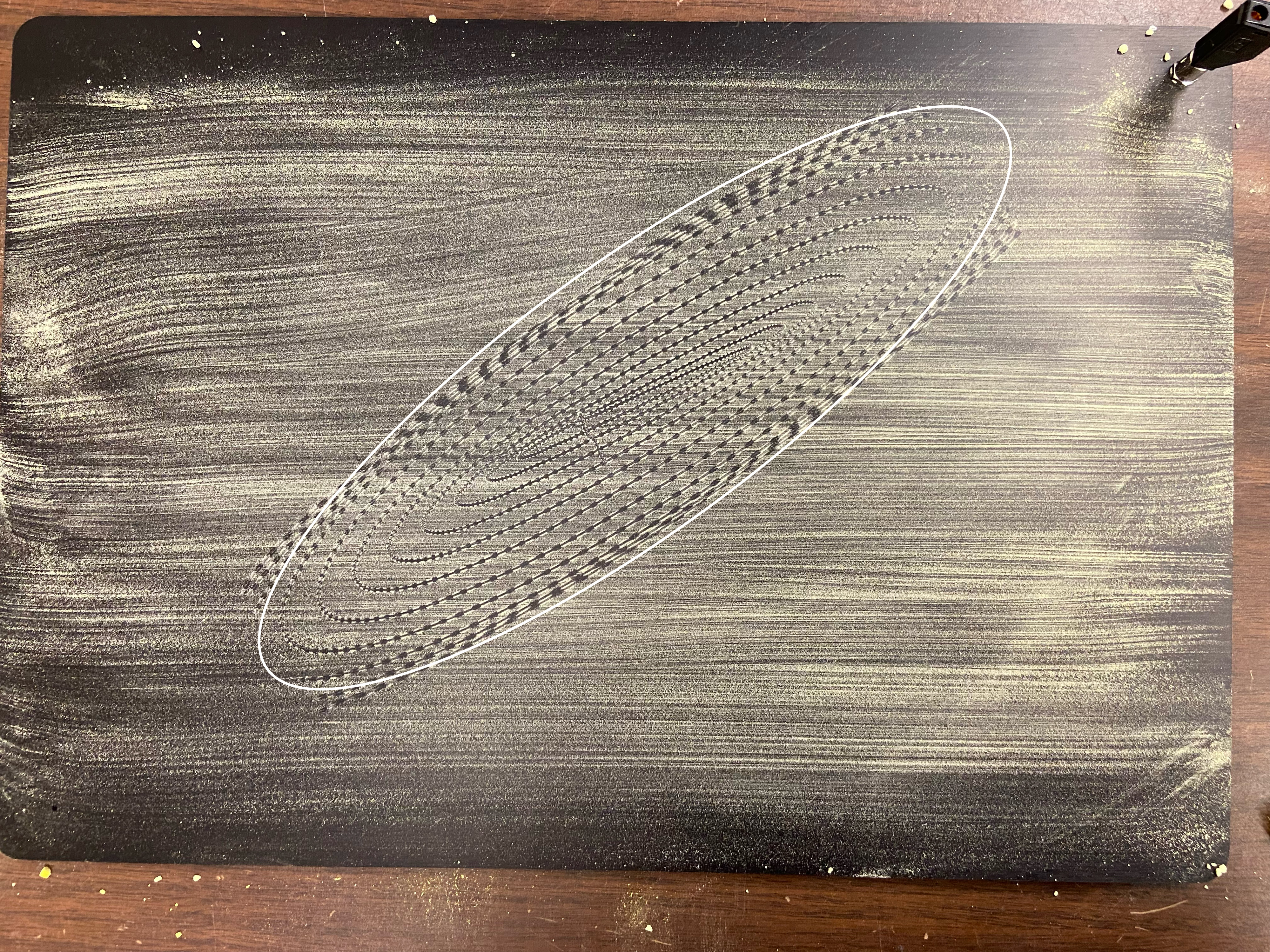

• Use the time markers to measure the sections of the orbit that are equal in time.

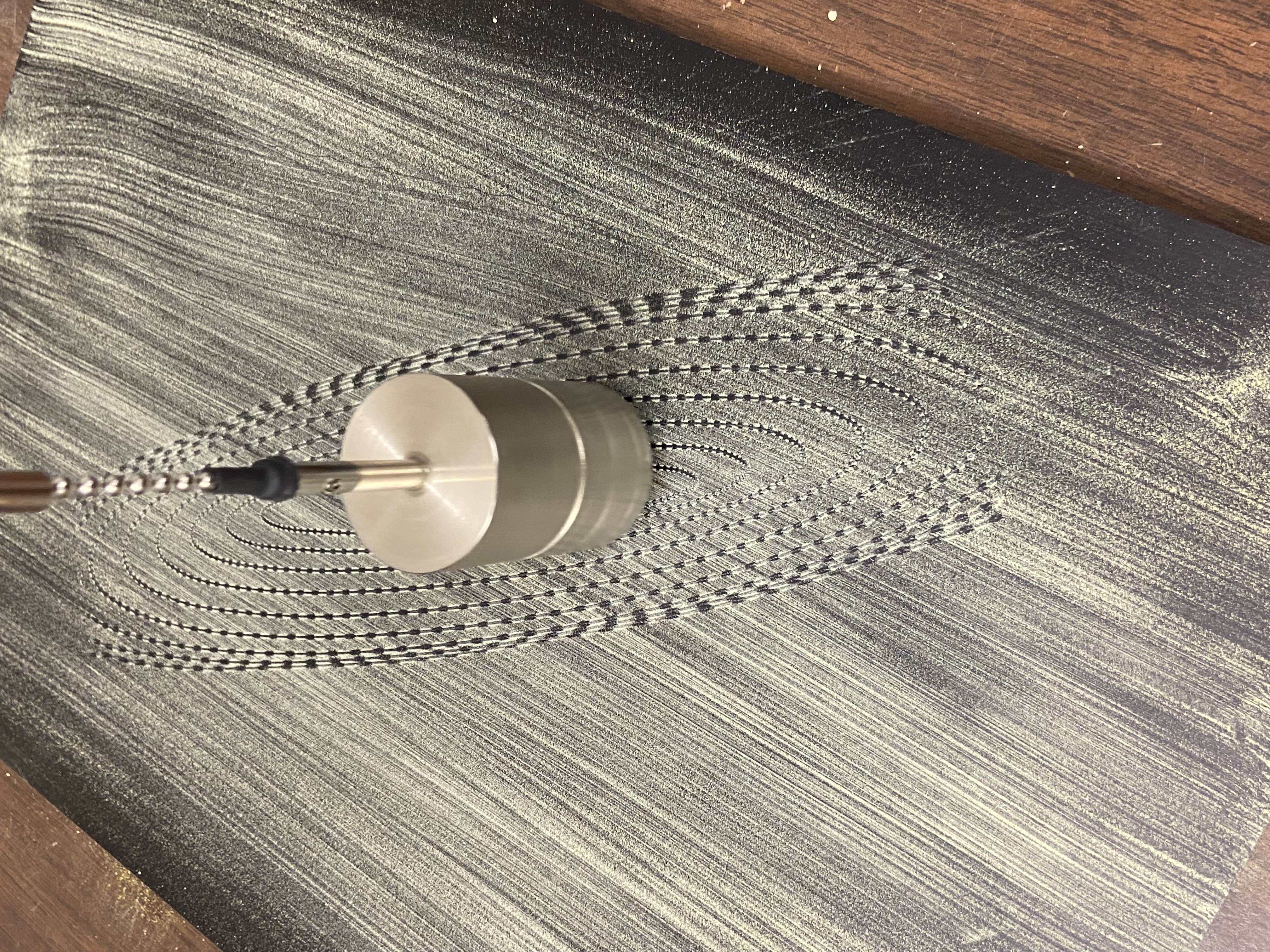

Photos show the demonstration used at the U.T. Austin Physics Dept.

• Wear proper PPE before handling the demo.

• Place the black board in between the tripod stand.

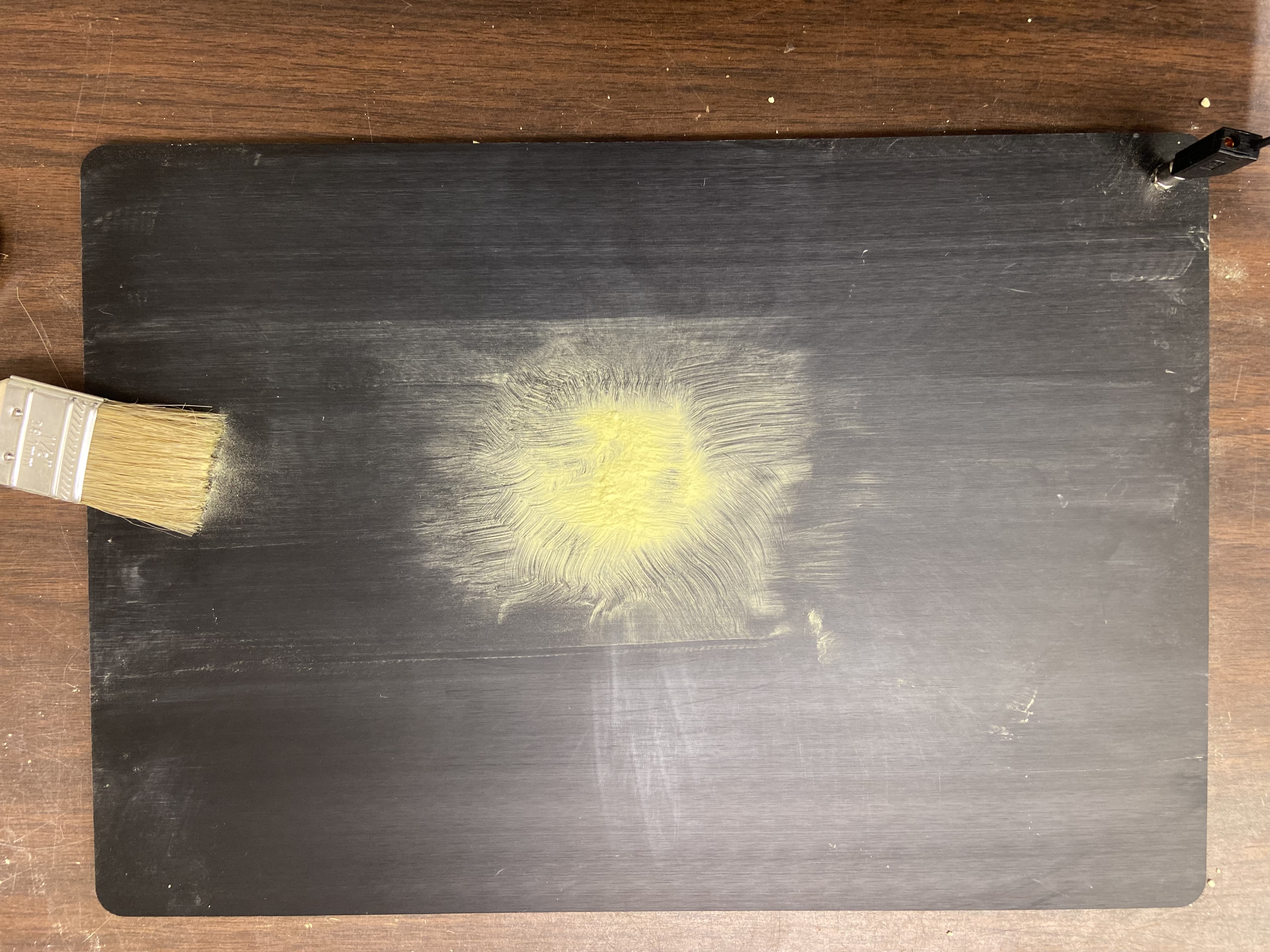

• Pour small amount of sulfur powder from the small glass container labelled "used" onto the black board. Use about as much sulfur shown in the figure on the left below.

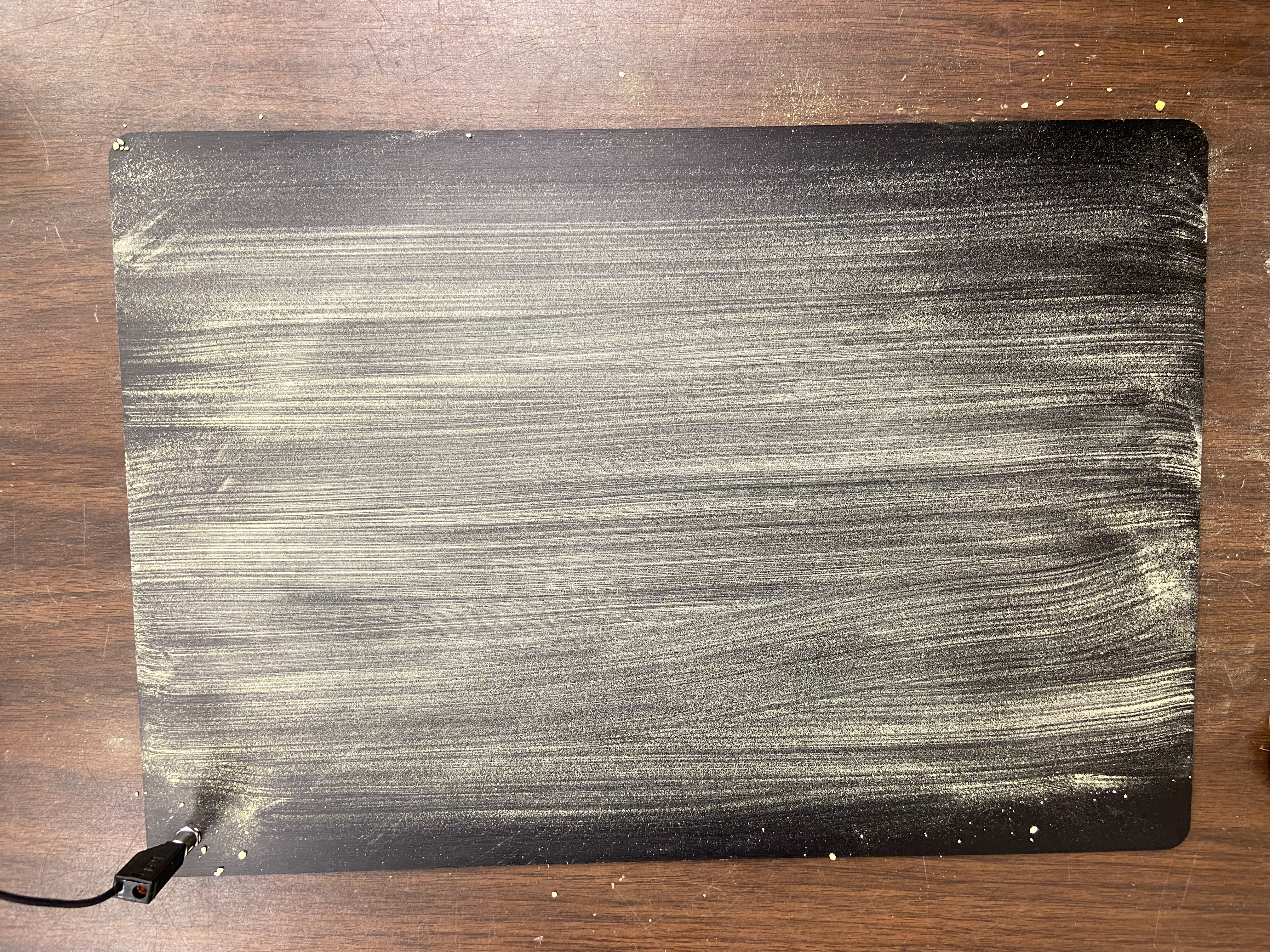

• Use the brush and spread the powder thinly onto the board. The board should look like the figure shown on the right below.

• Plug one end of the cable into the black board and the other end into the tripod stand. When delivering, plug in the power source.

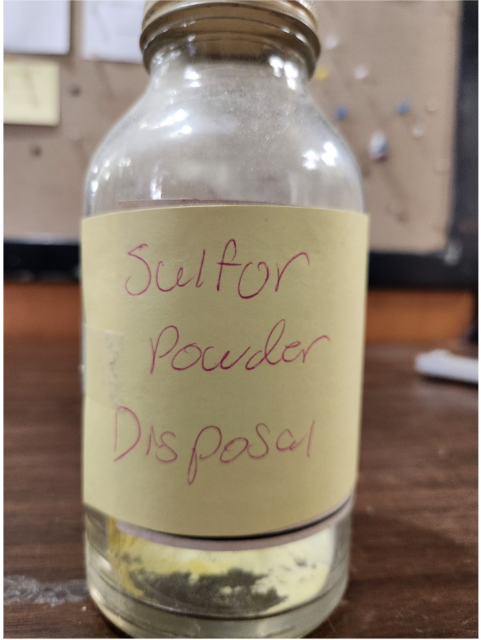

• Once the demo is returned, pour the remaining sulfur powder into the glass container labelled for sulfur powder disposal as best as you can (pictured below).

• Wash the remaining remnants off of the black board in the sink with soap and water.

• Wash the table that the demo was used on with soap and water.

• Wash the brush with soap and water.

• Dry the table and black board and store in the designated demo container.

• Put all cleaning materials that came into contact with the sulfur in a ziplock bag and attached a waste tag with "Trace contamination of sulfur" on it. Dispose of the ziplock bag in the black bucket designated for solid waste.
