PIRA 5A50.10 - Wimshurst Machine

• The Wimshurst machine carries out charging by induction automatically when discs are turning.

• Two large insulated discs carrying symetrically placed aluminum foil sectors are rotated about a common axis in opposite directions.

• Leydon jars connected to the two electrodes store the charge as it is generated.

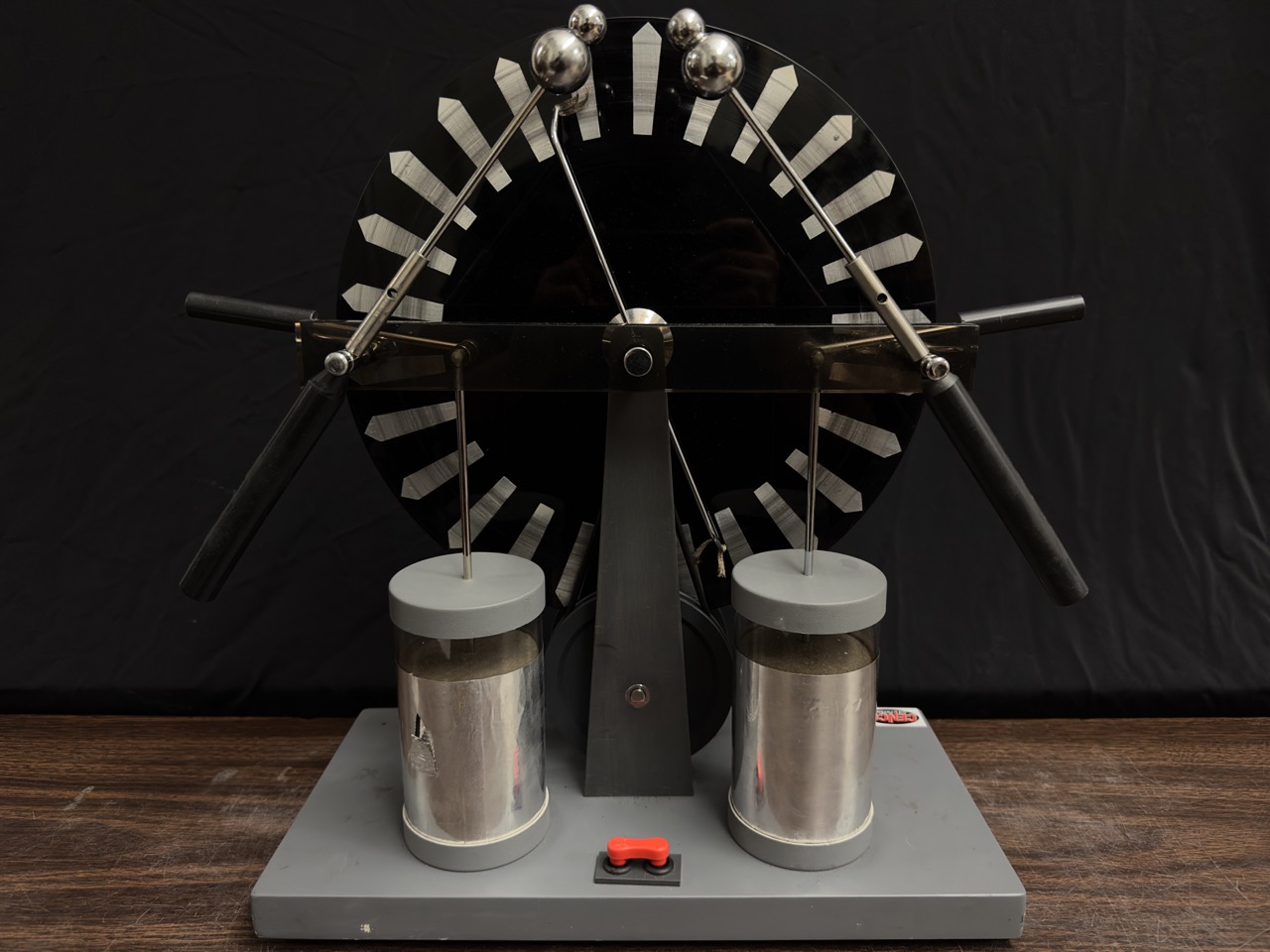

Photo Shows Appartus Used by the University of Texas at Austin.
